Wide angle of view

Wide angle of view

Pixel pitch less than 2.6mm LED module can apply GOB encapsulation technology for better dust-proof and moisture-proof with wider viewing angle

Efficient heat dissipation

Efficient heat dissipation

Magnetic embedded module which edges are naked, lighter and thinner, fast for installation with great flatness, also efficient to dissipate heat

Ultra HD

Ultra HD

Cabinet is compatible with P1.5625、P1.838、P2.6 modules that support them replacing freely to come true HD with low cost

Easy disassembly and assembly

Easy disassembly and assembly

New knob switch for easy & fast fixation of led module and power box. Only one person enough to finish the dismantling and installation

High-end control system

High-end control system

Applied high-end control system with high refresh rate, grayscale and brightness design, which can greatly play the detail performance of fine pixel pitch led display

Efficient protection

Efficient protection

Automatically anti-collision corner protector design for efficient protection at any time and reduce accidental damage to extend LEDs lifespan

Arc splicing

Arc splicing

Multiple angles installation: 90°cube by bevel-edge design, 0°,±2.5°,±5°curved shape by an angled lock

High refresh rate & high grayscale

The experter of indoor HD displaying

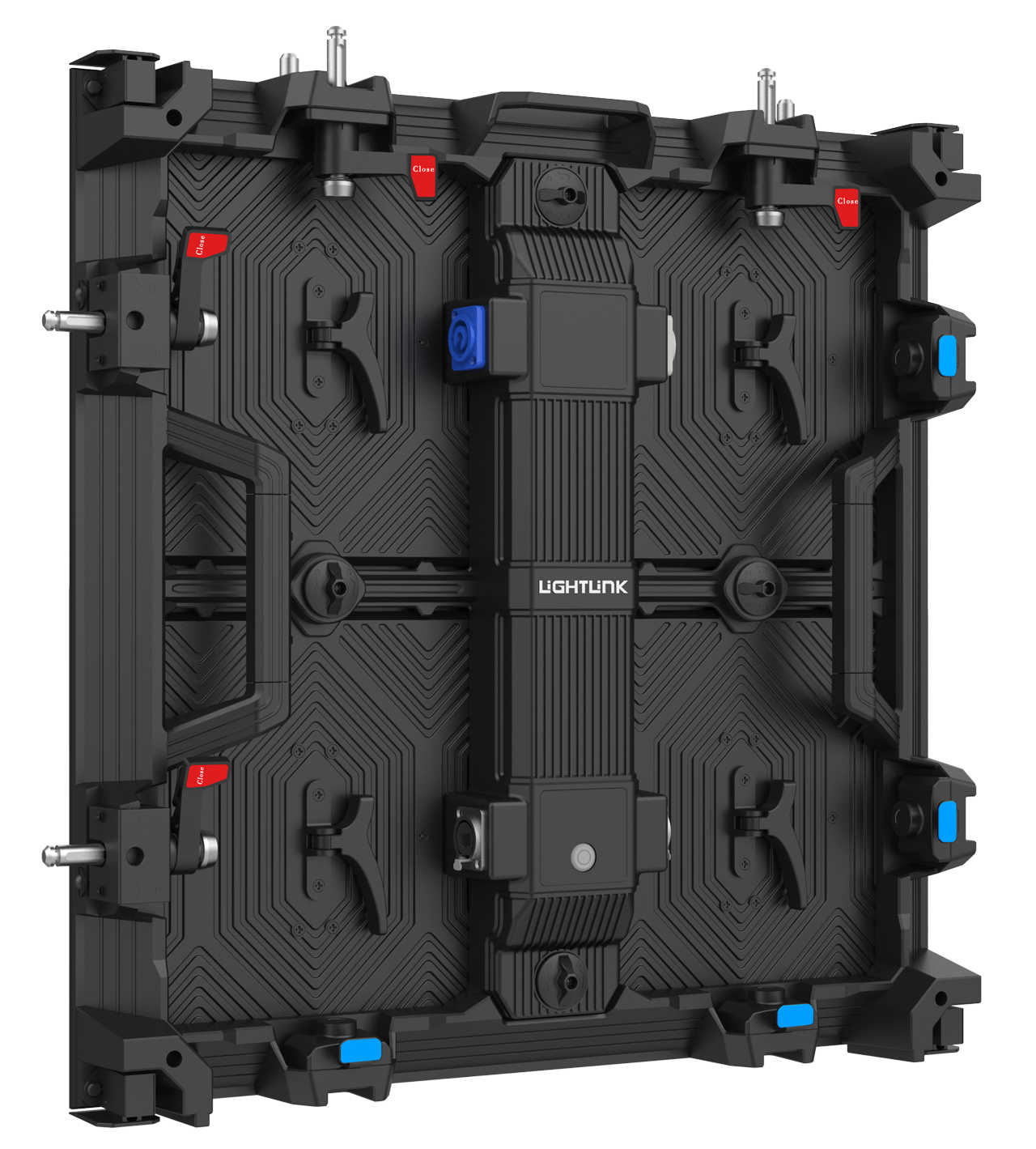

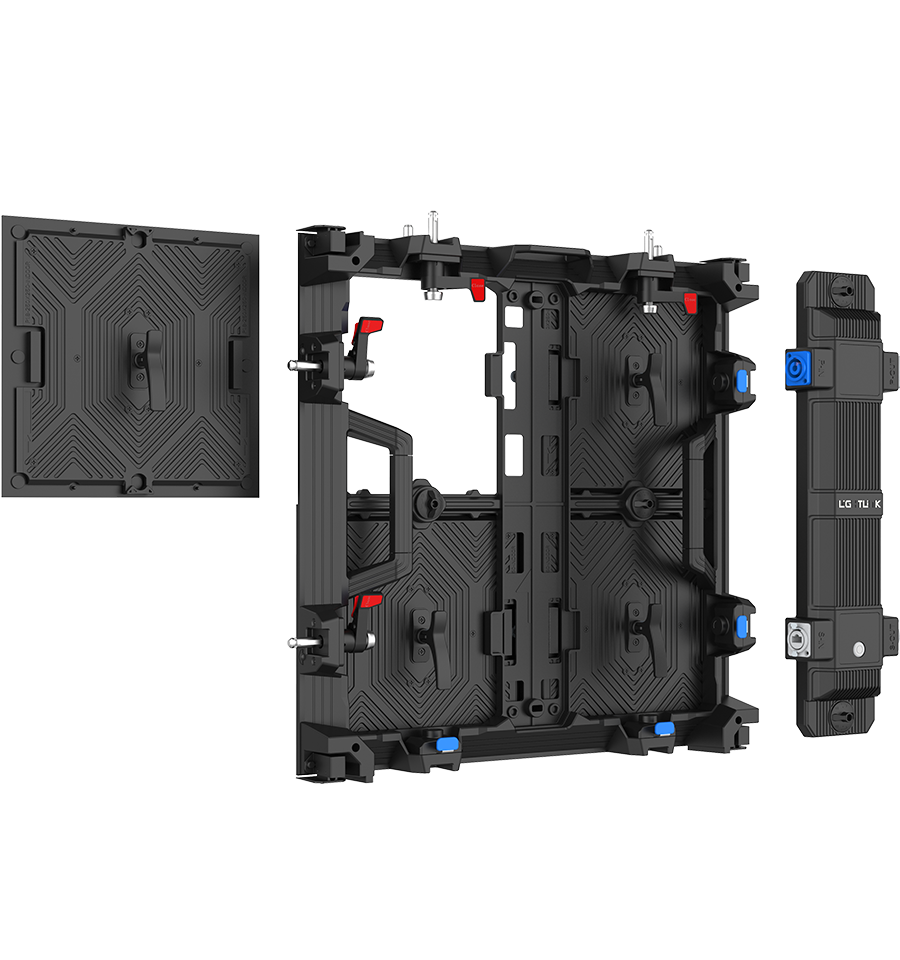

Modular design

Modular design

Detachable control box + aluminum die-casting frame + wireless module

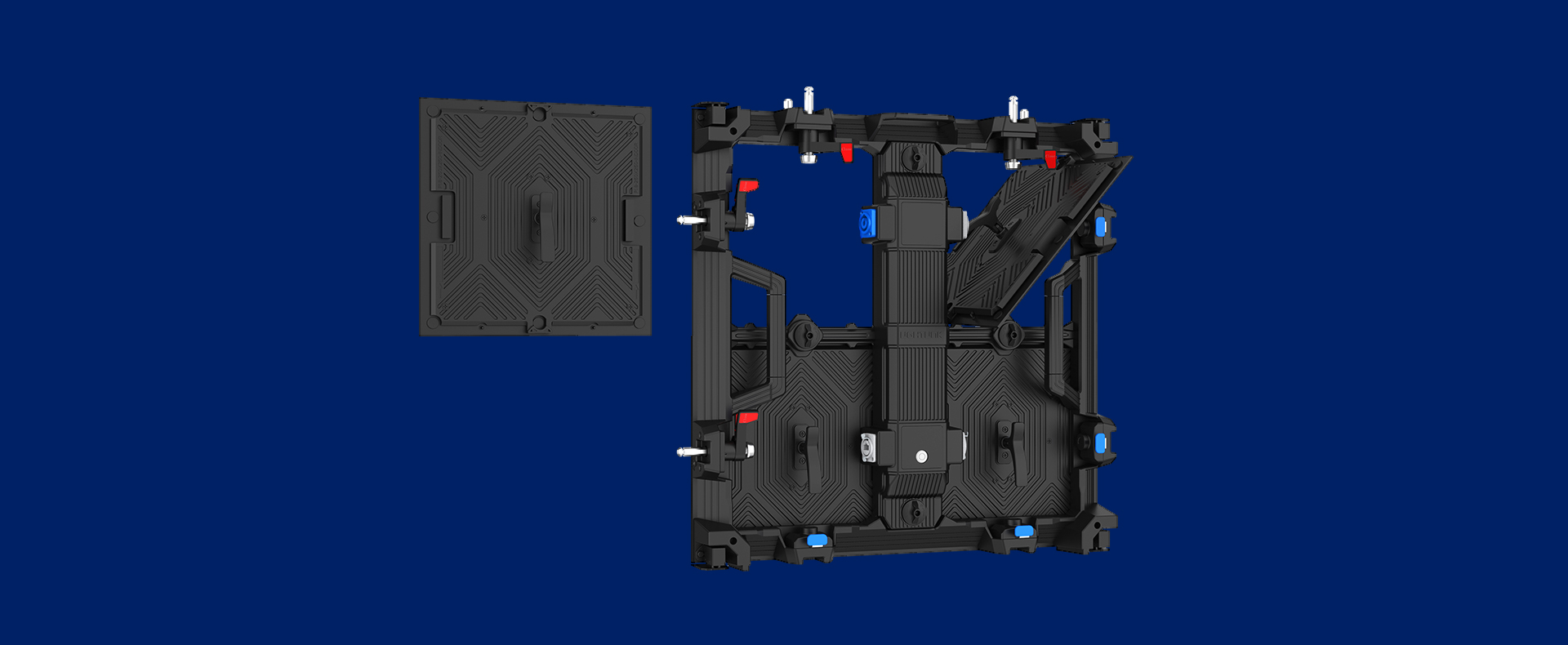

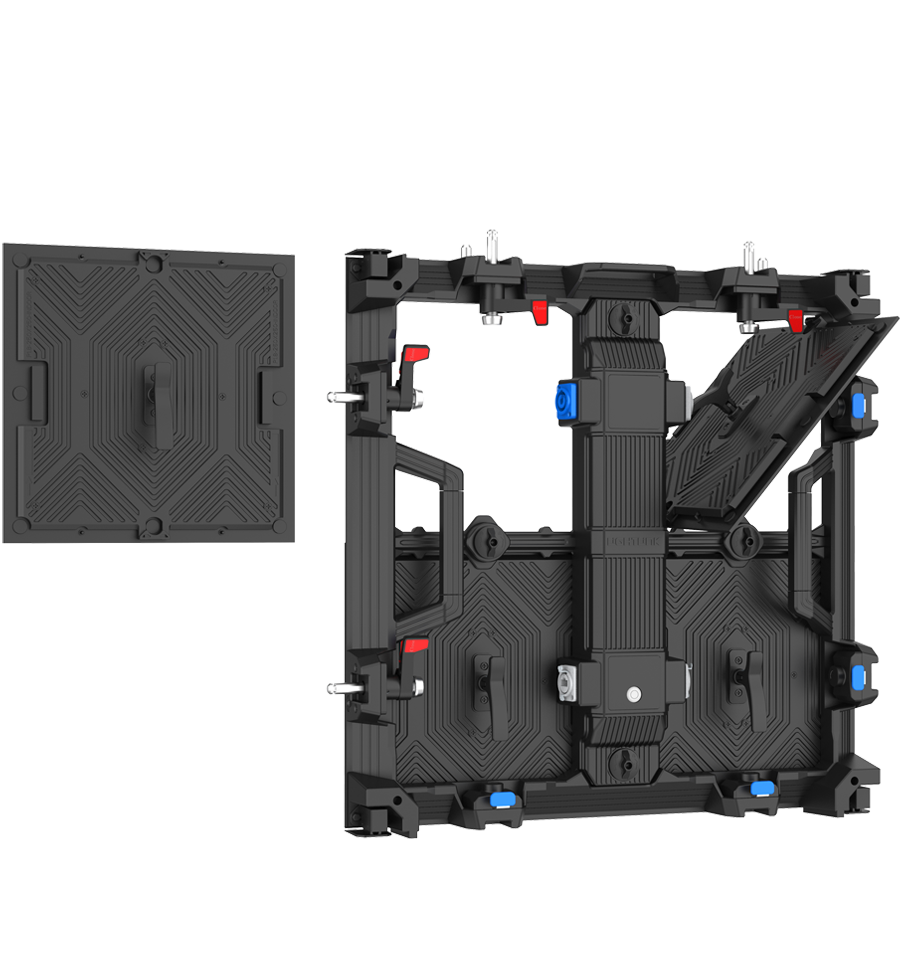

Magnetic embedded module which edges are naked for wall-mounted installation

Magnetic embedded module which edges are naked for wall-mounted installation

Unique design compared with normal one, LED module can embed into LED cabinet to improve the accuracy and flatness of the entire screen.

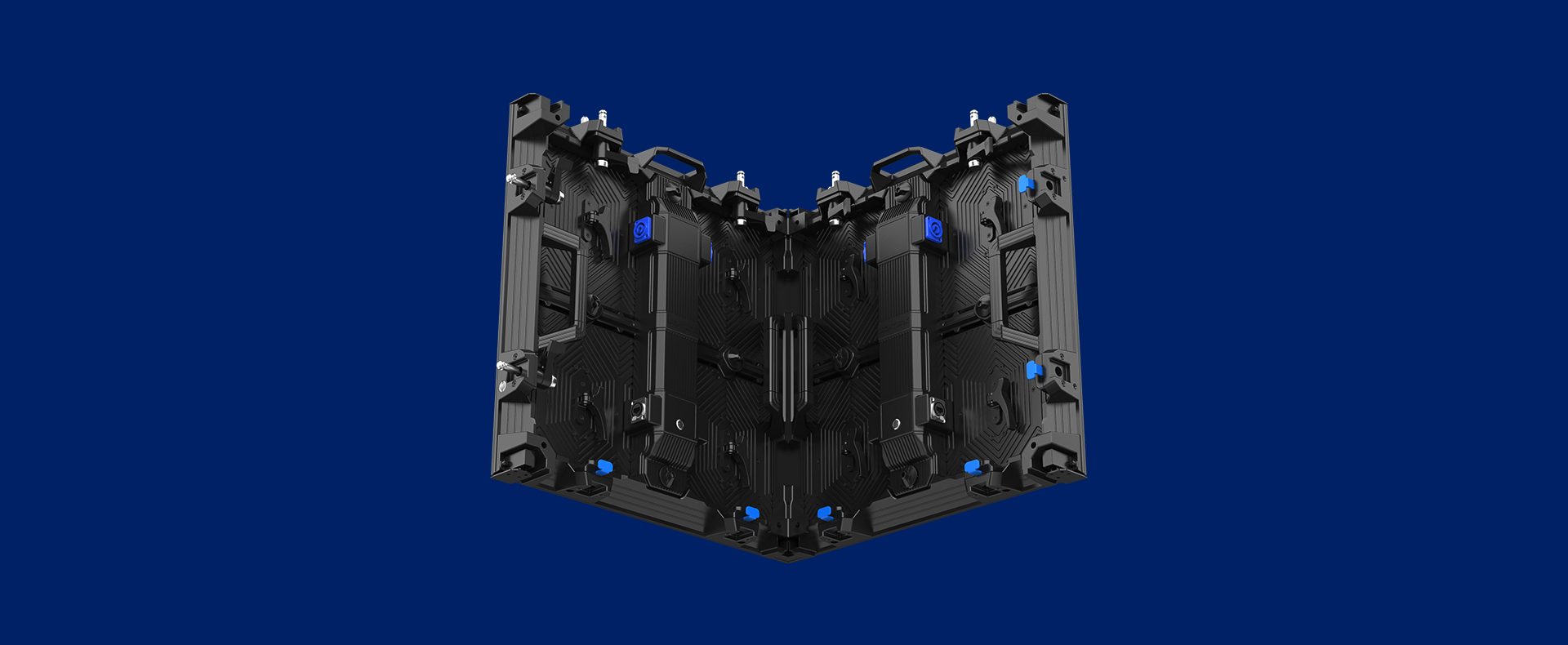

Creative solutions

Creative solutions

Allow for 90°installation by edge-cutting, 0°,±2.5°,±5°curved installations by angled plates

Product parameters

  • Specifications

    Indoor

  • Model No.

    X1.5

    X1.8

    X2.6

  • Pixel pitch(mm)

    1.5625

    1.838

    2.6

  • LED type

    4in1+AOB technology

    SMD1515

    SMD1515

  • Scan method

    1/32s

    1/23s

    1/16s

  • Module resolution(Pixels)

    160*160

    136*136

    96*96

  • Module size(mm)

    250*250

    250*250

    250*250

  • Pixel Density(Pixels/㎡)

    409,600

    295,936

    147,456

  • Brightnes（s cd/㎡）

    400-600

    400-600

    800-1500

  • Viewing Angle(H/V)

    H:160V:160

    H:160V:160

    H:140V:140

  • Cabinet Size(mm)

    500*500*61

    500*500*61

    500*500*61

  • Cabinet Material

    Aluminum die-casting

  • Cabinet weight(kg)

    ≈6

    ≈6

    ≈6

  • Refresh rate(Hz)

    ≥3840

    ≥3840

    ≥3840

  • Grayscale(bit)

    16

    16

    16

  • Input voltage(V

    AC110,220,110-240

    AC110,220,110-240

    AC110,220,110-240

  • Input power frequency(Hz)

    50/60

    50/60

    50/60

  • Max Input Power(W/㎡)

    ≈600

    ≈600

    ≈600

  • Average InputPower(W/㎡)

    ≈300

    ≈300

    ≈300

  • Lifespan(H)

    ≥50,000

    ≥50,000

    ≥50,000
