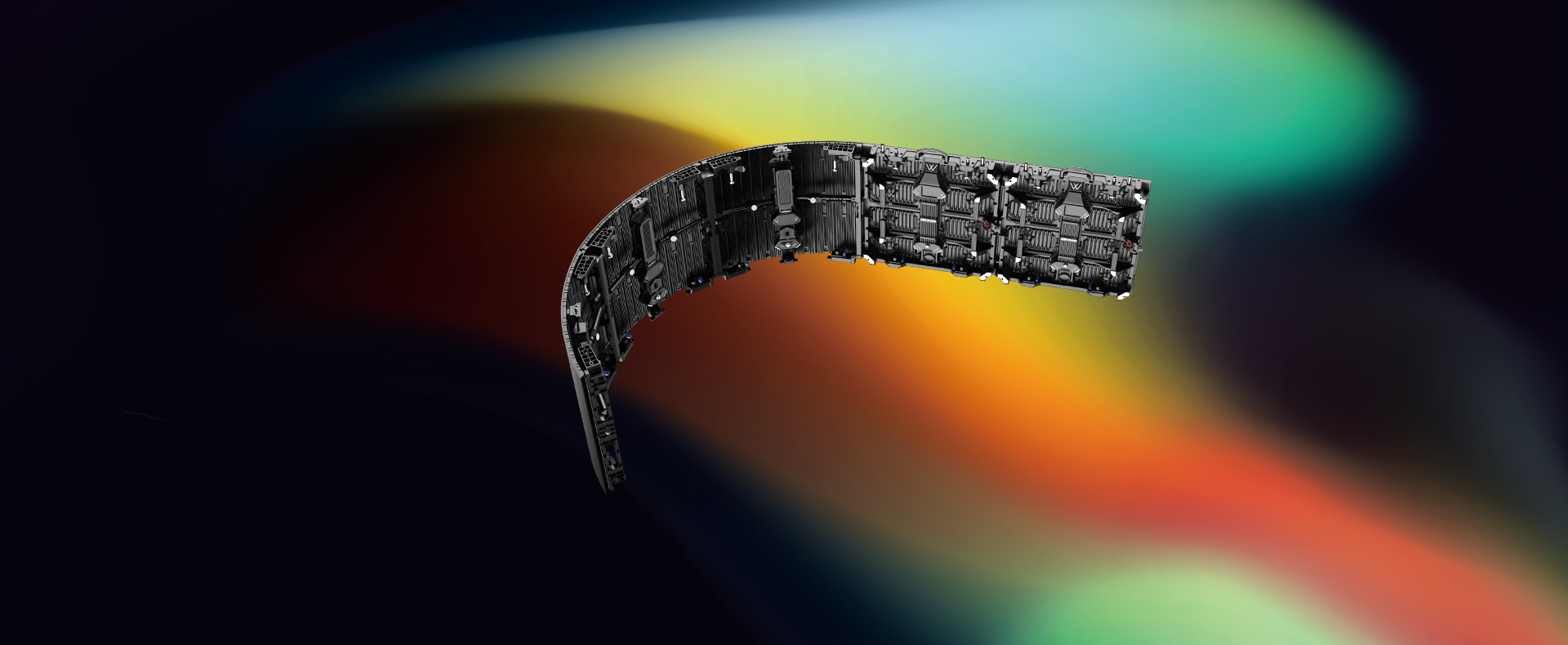

Soft LED module

Soft LED module

Single LED panel can be “S”shape.

Mixed splicing

Mixed splicing

Freely splicing with Alien series A/B/C.

Great compatibility

Great compatibility

Indoor or outdoor use only need to swap the LED modules.

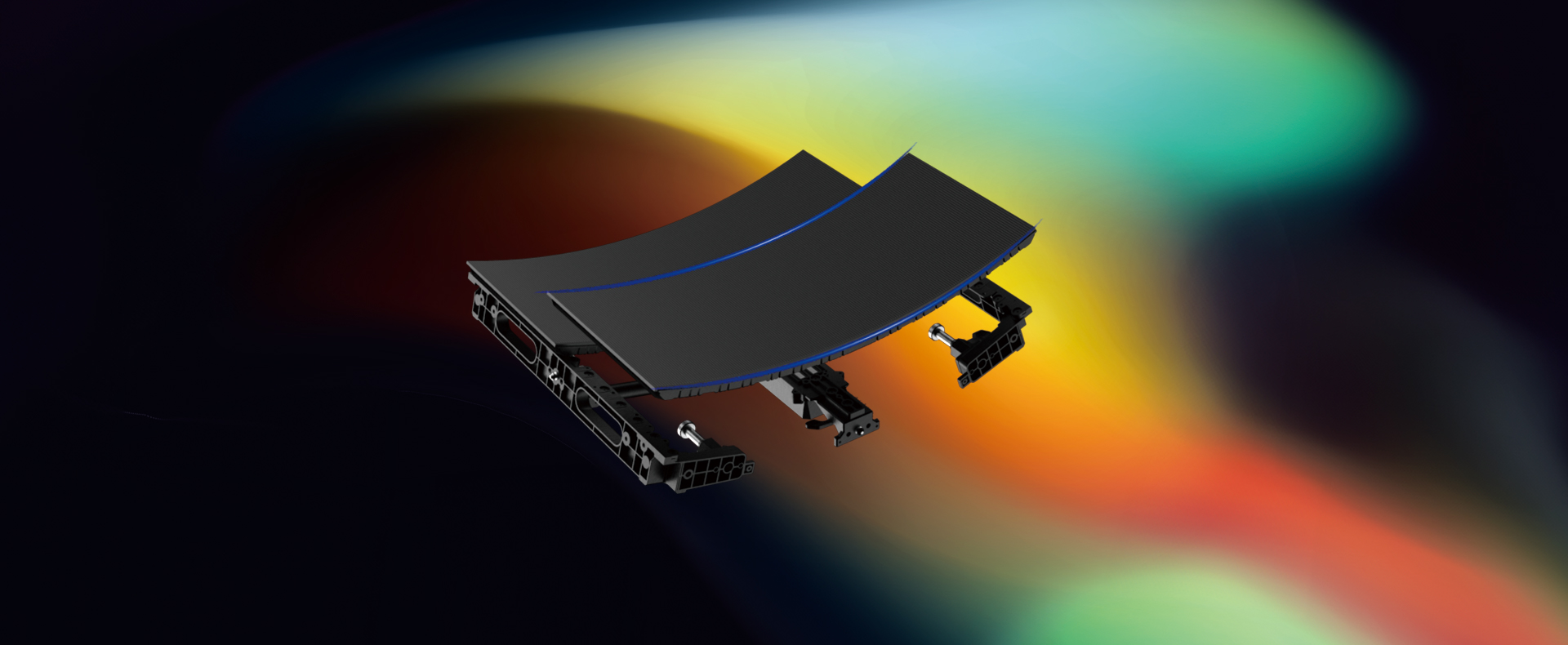

Easy operate

Easy operate

Triple-lock and magnetic snap-lock design make it easy to achieve smooth curves.

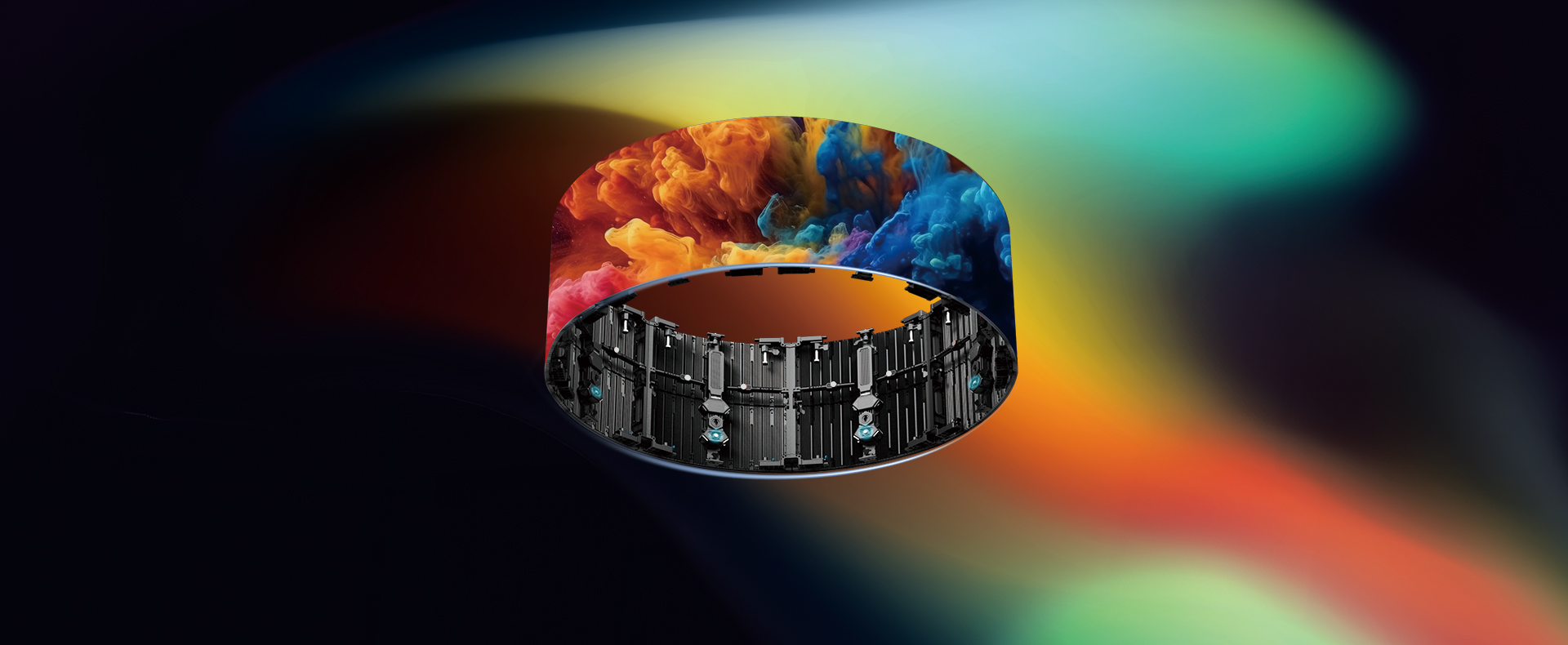

Cylinder shape

Cylinder shape

Only 8 LED panels required for a full cylinder.

7680Hz

7680Hz

Smooth, flicker-free visuals, ideal for live events and broadcasts, delivering clear motion and vibrant colors.

Alien E

Indoor: P2.6/P3.9, Outdoor:P3.9



Soft LED module

Soft LED module

Truly soft LED module for natural curves, a single cabinet can realize concave & convex simultaneously.
Excellent Flatness

Excellent Flatness

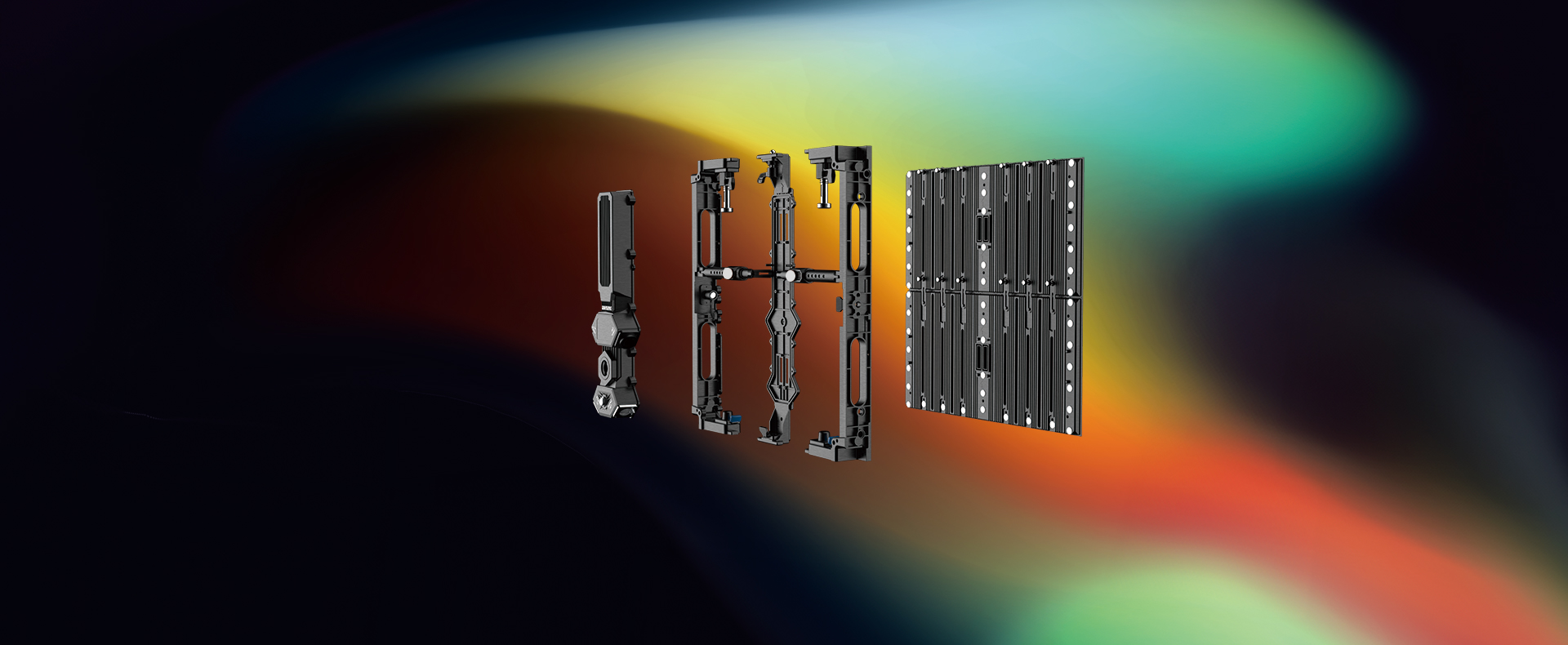

Triple-lock cabinet ensures seamless splicing. Magnetic snap modules for a further precise fit.
Highly Versatile

Highly Versatile

Universal components for both indoor and outdoor use by simply swapping LED modules.
Creative Mixed Splicing

Creative Mixed Splicing

Freely splicing with all Alien series products A/B/C.

Product parameters

  • Parameters

    Indoor

    Outdoor

  • Pixel pitch(mm)

    2.6

    2.6

    3.9

    3.9

  • LED type

    1515

    1515

    2121

    1415

  • Scan ratio(S)

    1/16

    1/24

    1/16

    1/16

  • Module resolution(Pixels)

    192*96

    192*96

    128*64

    128*64

  • Pixel density(Dots/m²)

    147,456

    147,456

    65,536

    65,536

  • Brightness(Cd/m²)

    ≤1200

    ≤1000

    ≤1000

    ≤3500

  • Cabinet weight(Kg)

    7±5%

    8±5%

  • Module size(mm)

    500*250

  • Cabinet size(mm)

    500(W)*500(H)*76(D)

  • Max power consumption(W/m²)

    ≈800

  • Average power consumption(W/m²)

    ≈400

  • Refresh rate(Hz)

    ≤7680

  • Viewing angle(H/V)

    H:150 V:140

  • Input voltage(V)

    AC 100-240V,50/60Hz

  • Frame material

    Aluminum die-casting

  • Maximum lifting / Seating

    12m

  • IP rate(Front / Back)

    IP20

    Front IP65 / Back IP54

  • Operational temp / Humidity

    -20°C ~ +45°C, 10% ~ 90% RH

  • Storage temp / Humidity

    -40°C ~ +60°C, 10% ~ 60% RH

  • Lifespan(H)

    ≥50,000
