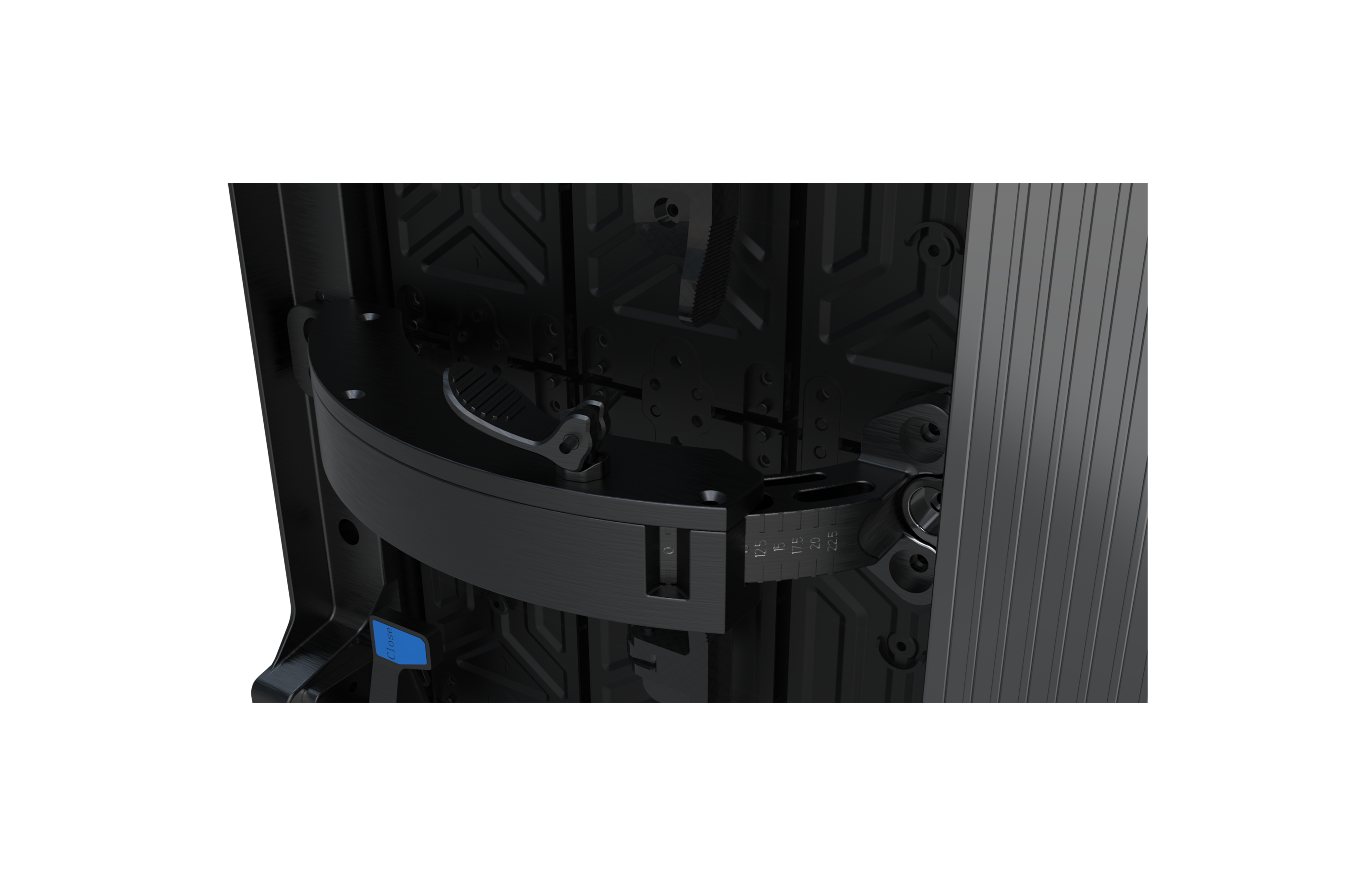

With a smoother and more natural curve than conventional beveled boxes
0°、±2.5°、±5°、±7.5°、±10°、±12.5°、 ±15°、±17.5°、±20°、±22.5°
Effectively improve the refresh rate and grayscale levels of the display
With only 8 boxes, with a diameter of 1.27 meters

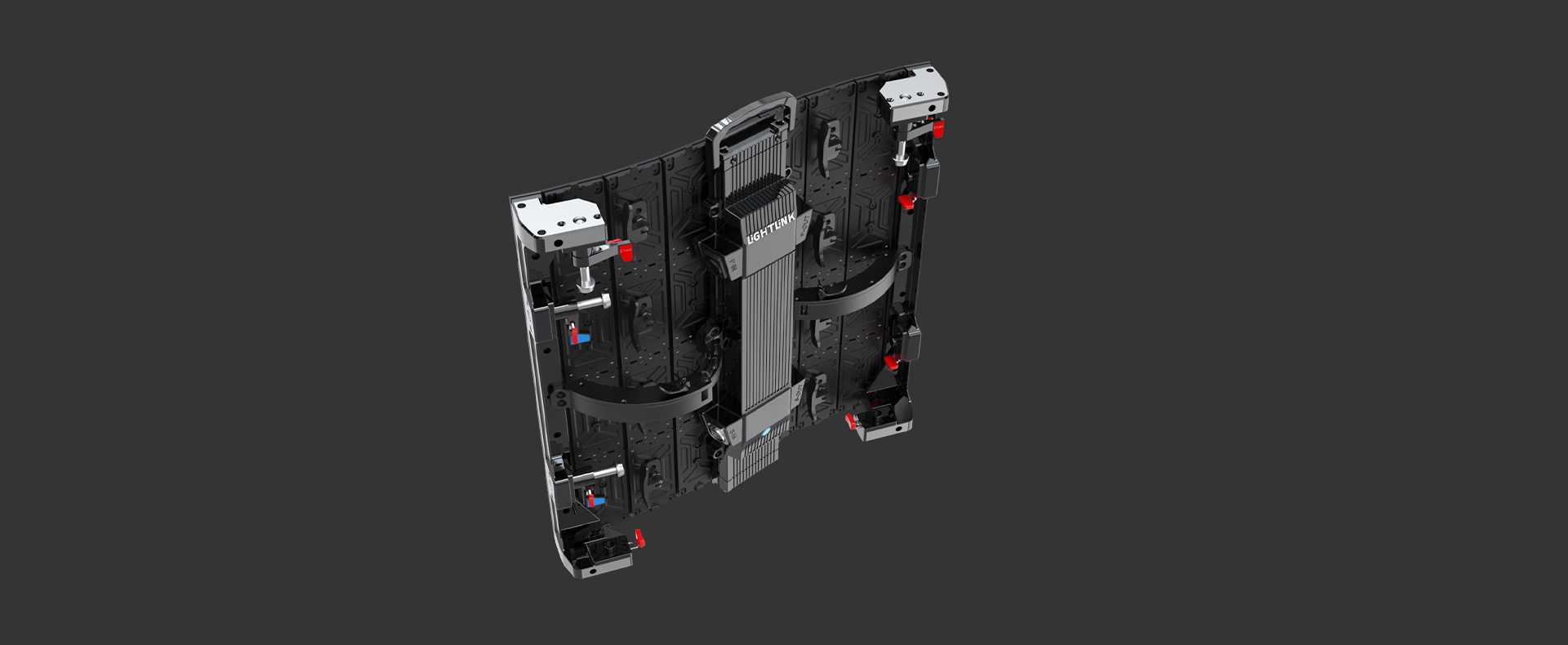

With support for full-front and full-back maintenance and independent removal of the control box

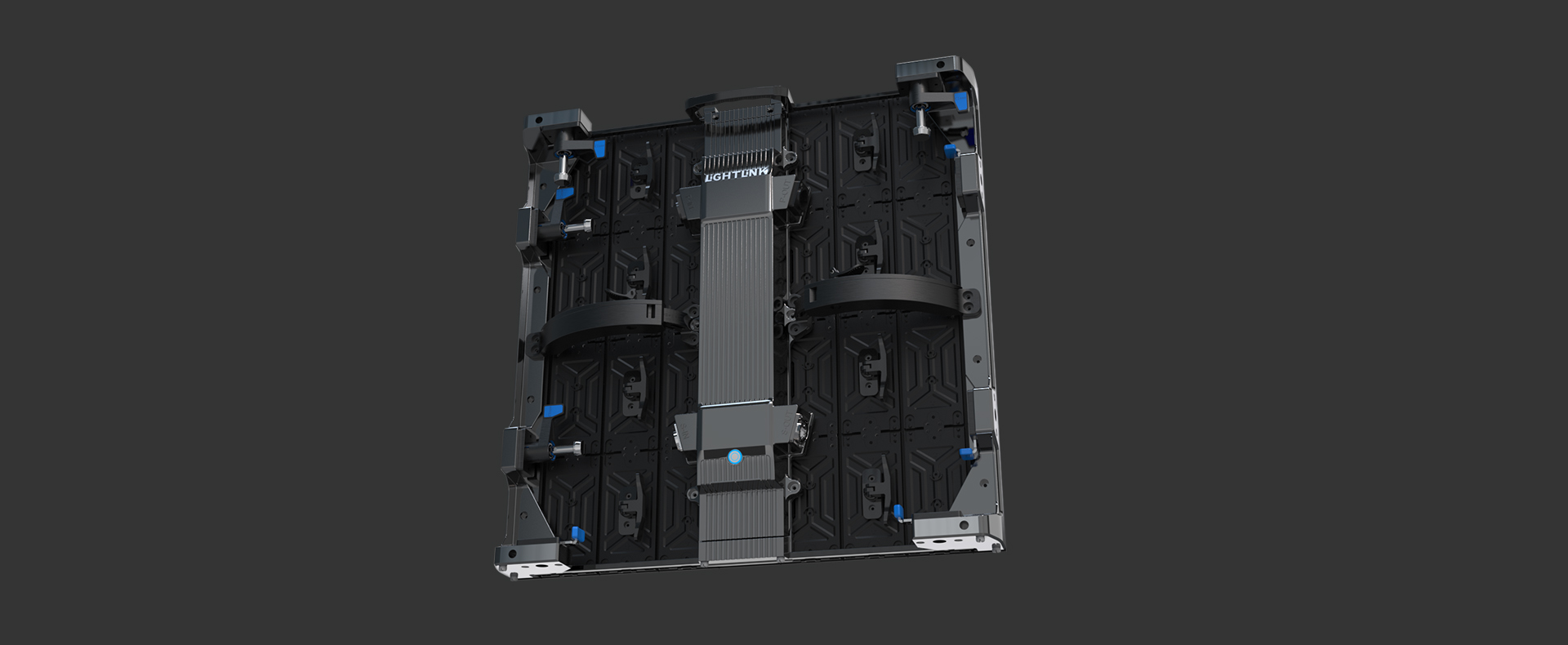

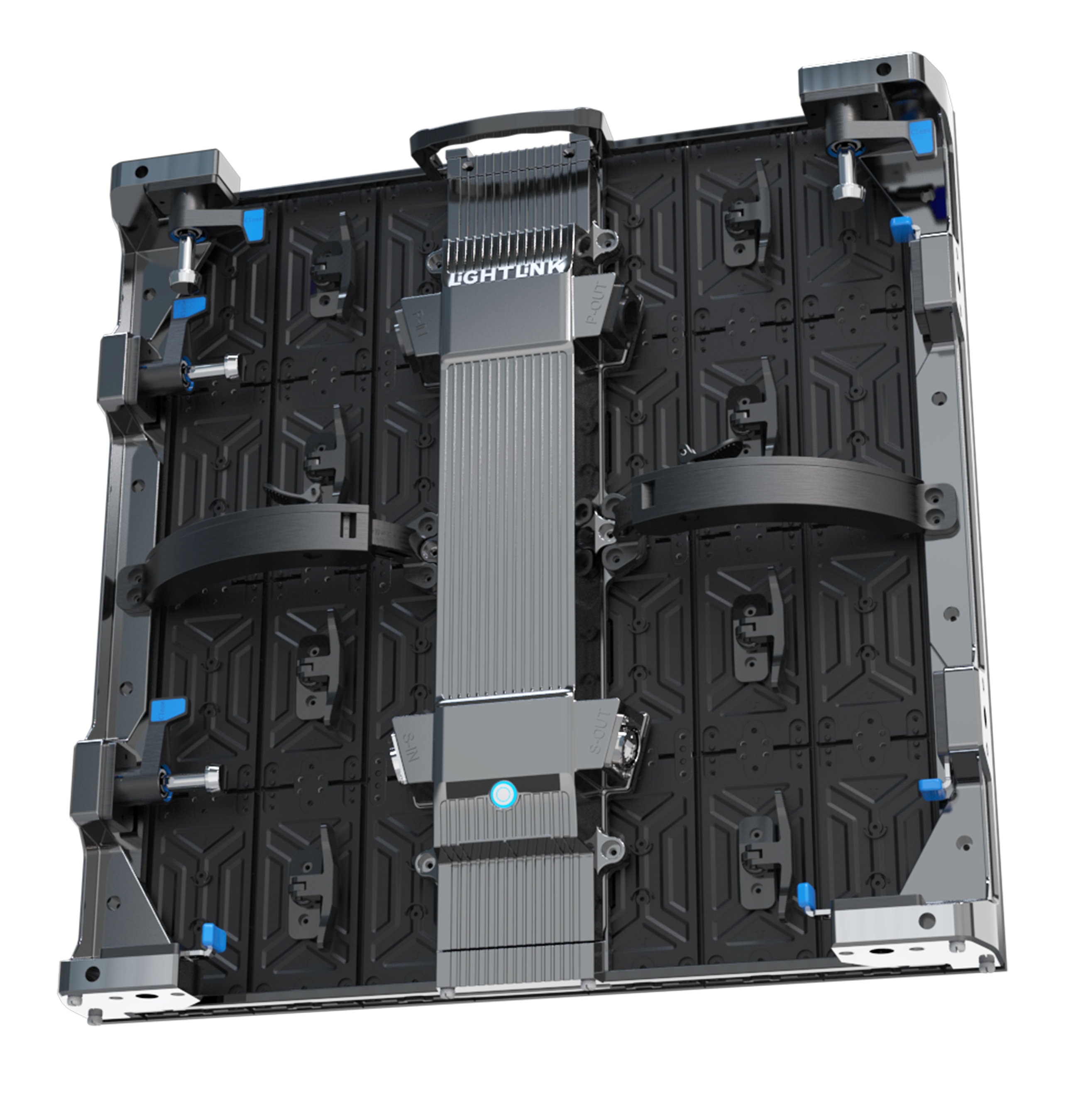

With a thickness of 74mm and a weight of only 6kg per box
Creative, high cost-effectiveness, specialized for curved screens

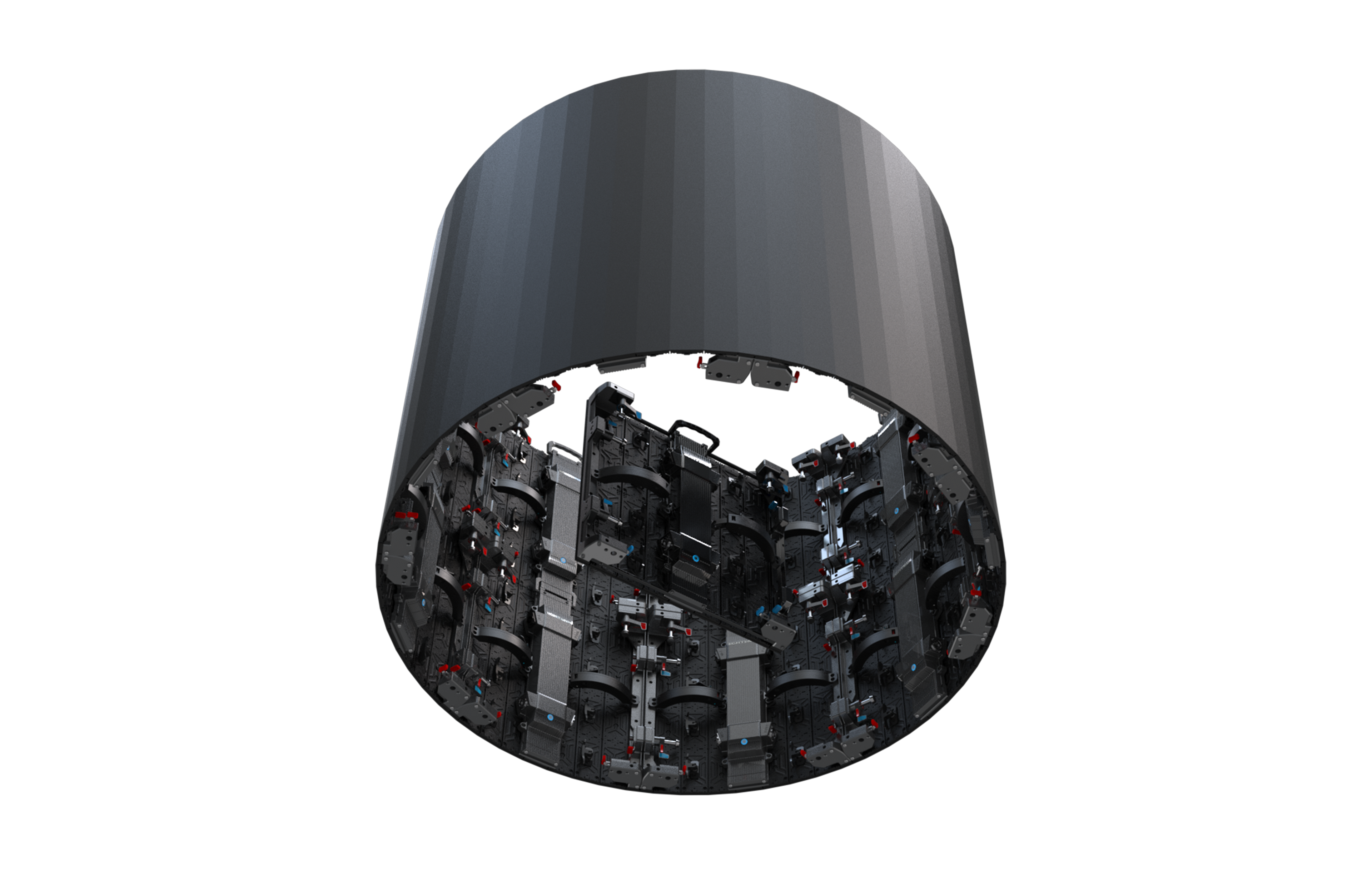

cylindrical splicing
With only 8 boxes, with a diameter of 1.27 meters
Creative display solution

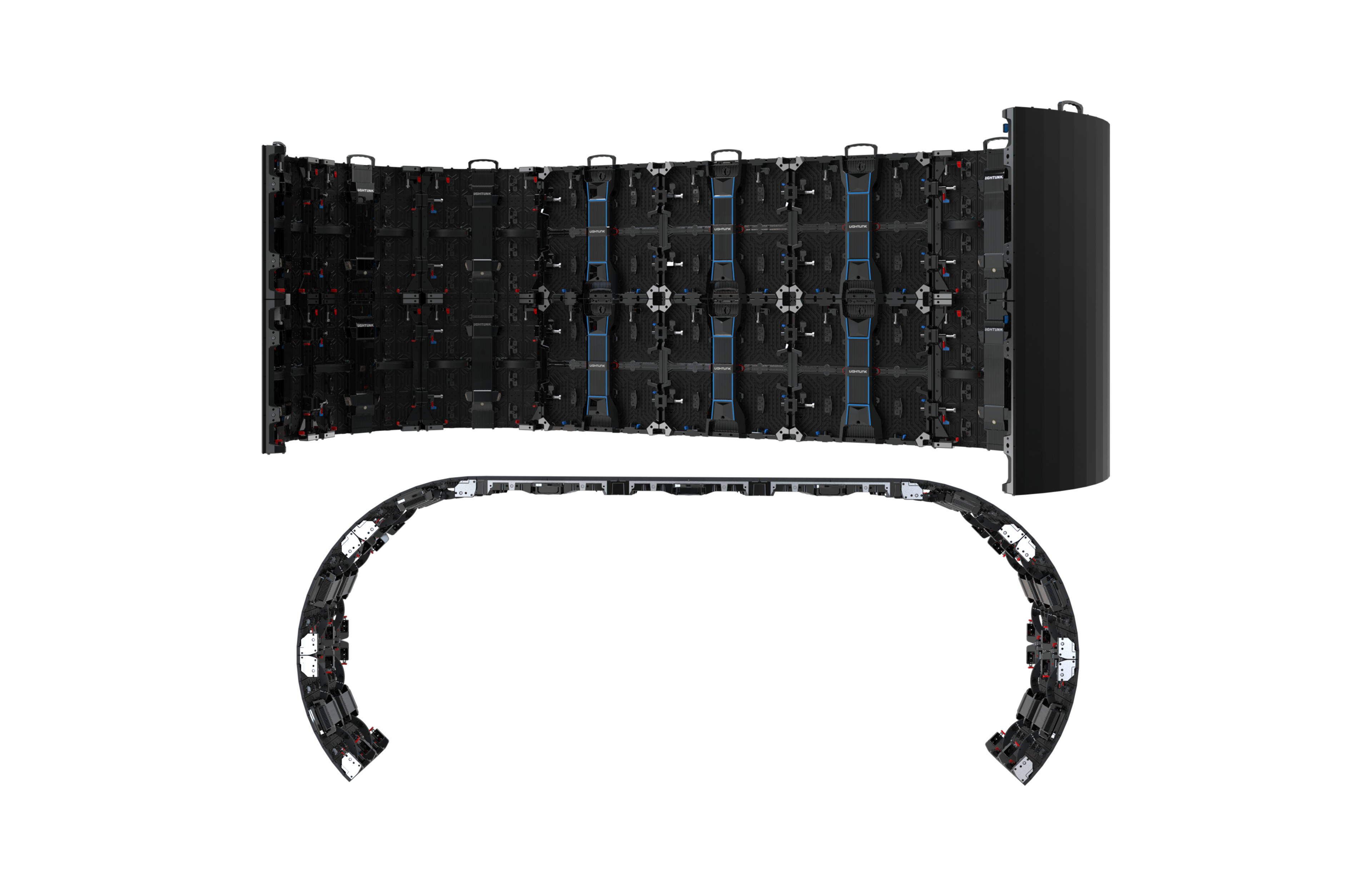

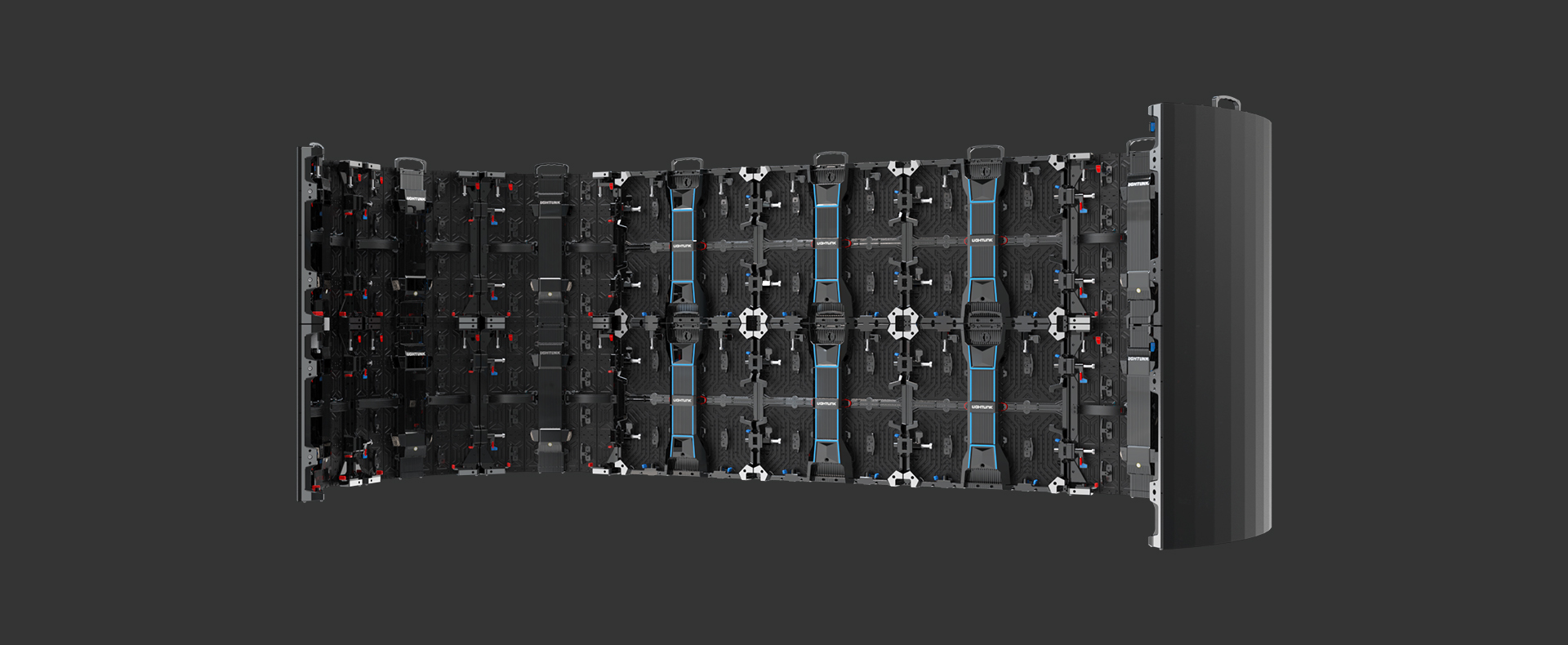

Creative assembly of internal and external curved surfaces, without boundaries to creativity
Compatible with the Oak series
Compatible with the Oak series
Pixel Pitch(mm)
2.6
2.6
LED type
SMD1515
SMD2121
Scan method
1/24s
1/16s
Module resolution(Pixels)
192*48
128*32
Module size(mm)
500*125
500*125
Pixel Density(Pixels/㎡)
147,456
65,536
Brightness（cd/㎡）
800
1000
Viewing Angle(H/V)
H:140 V:140
H:140 V:140
Cabinet Size(mm)
500*500*74
500*500*74
Cabinet Material
Aluminum die-casting
Aluminum die-casting
Cabinet weight(kg)
≈6
≈6
Refresh rate(Hz)
≥3840
≥3840
Working voltage(V)
AC110,220, 110-240
AC110,220, 110-240
Power input frequency（HZ））
50/60
50/60
Maximum power consumption(W/m²)
≈600
≈600
Average Power（W/m²）
≈300
≈300
Lifespan(H)
≥50,000
≥50,000
IP Rate
IP20
IP20
