HomeLed Displays Standard rental LED displays
7680Hz

7680Hz

IP65 Waterproof

IP65 Waterproof

Stable and reliable

Stable and reliable

Full viewing angle 140°

Full viewing angle 140°

Anti-skidding

Anti-skidding

Max 1.5T/㎡ loading

Max 1.5T/㎡ loading

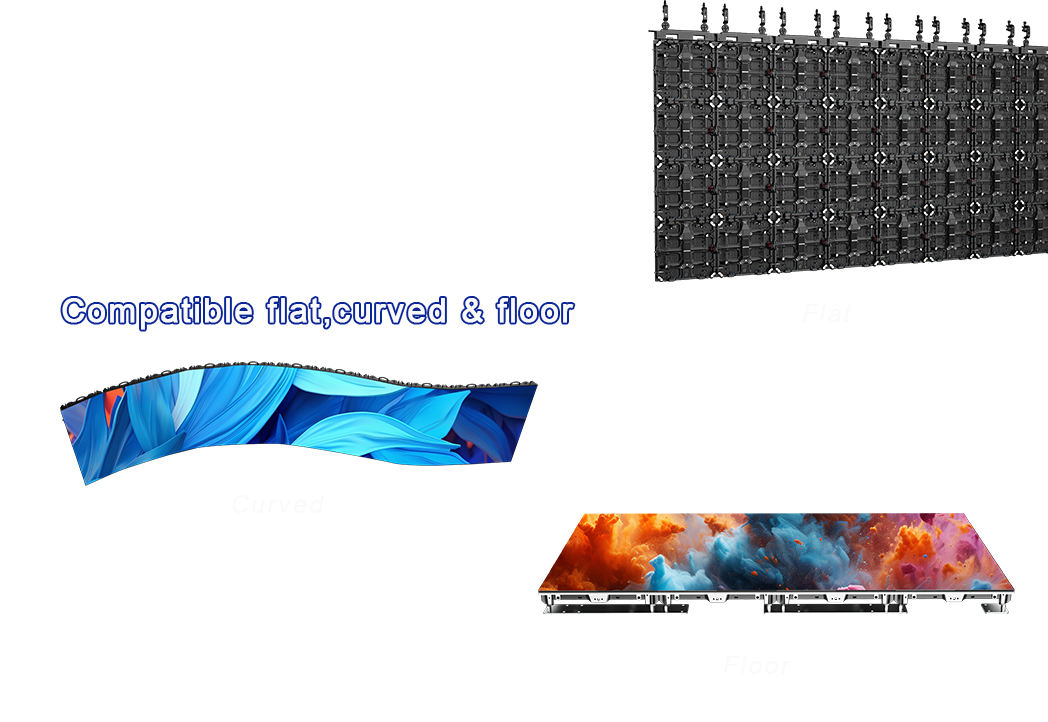

Alien D -Compatible with flat, curved, and floor

Outdoor:P2.6/P2.9/3.9/4.8


one type LED screen, multiple applications

one type LED screen, multiple applications

Provides smoother visuals, ideal for XR shooting

Provides smoother visuals, ideal for XR shooting

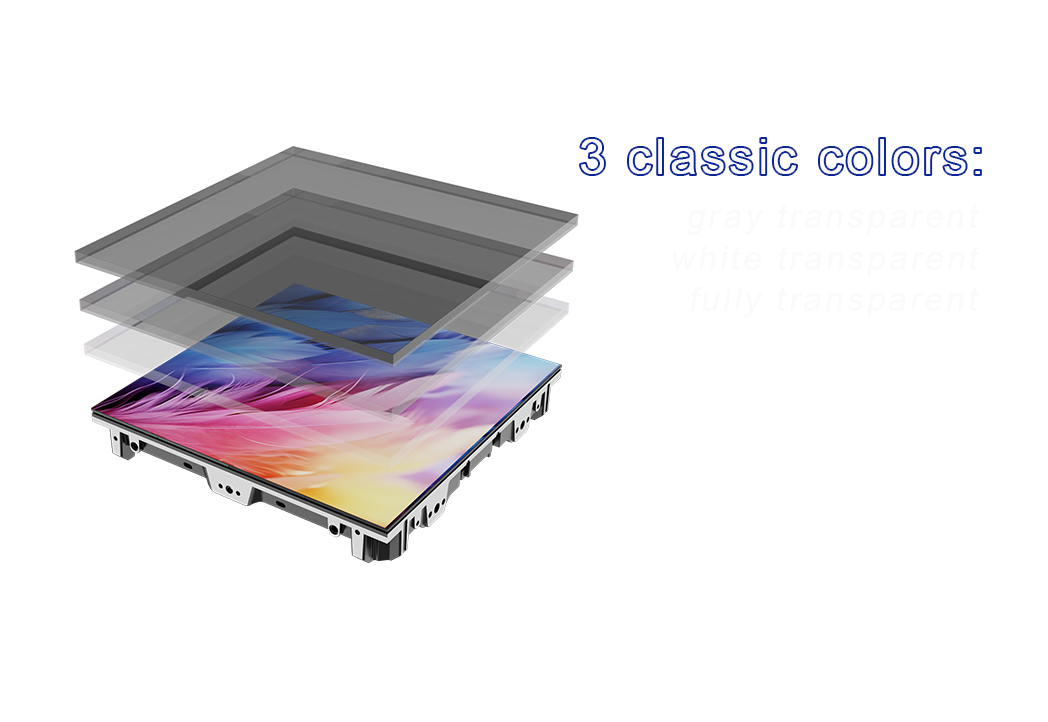

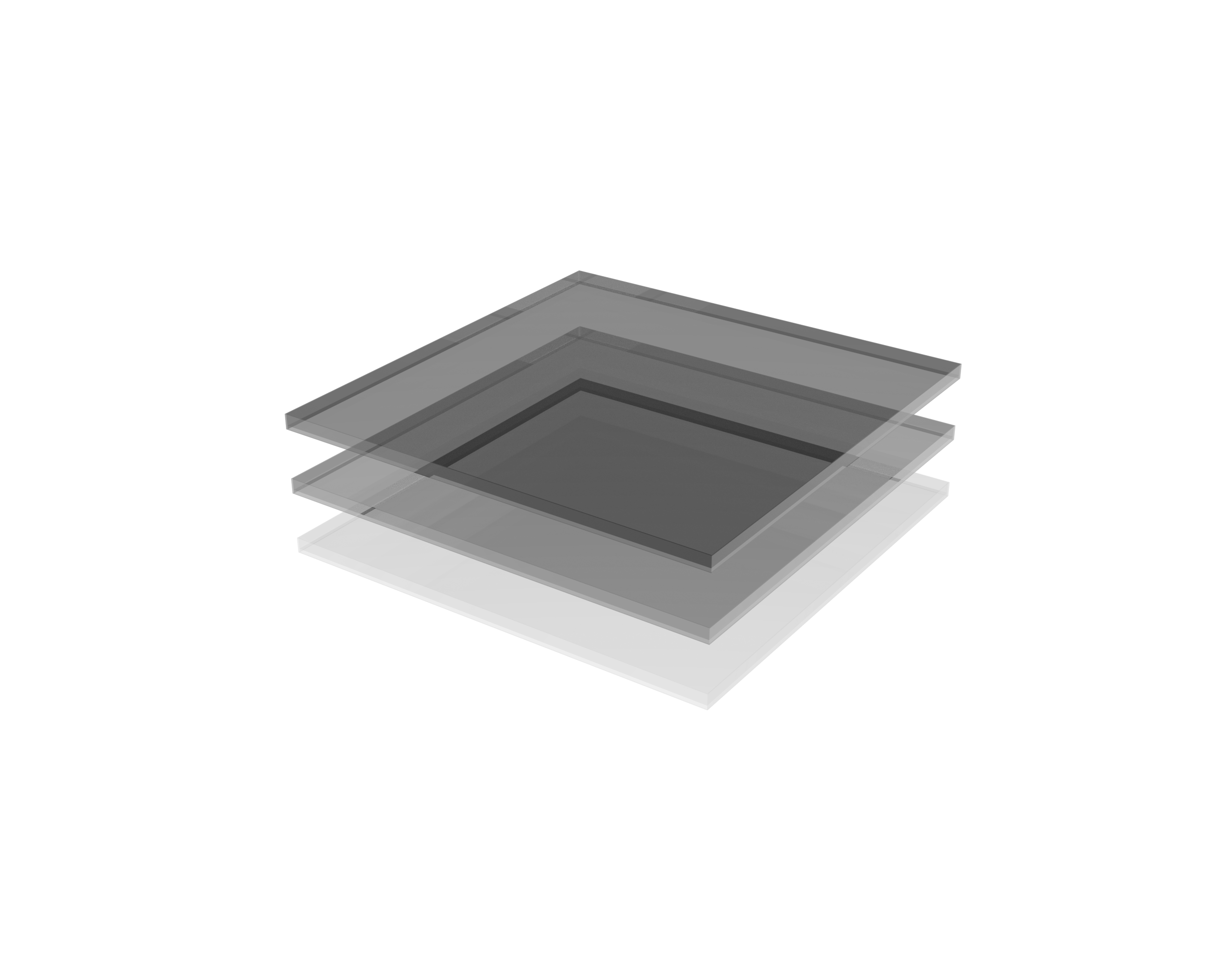

Multiple wear-resistant cover options available

Multiple wear-resistant cover options available

Excellent load-bearing capacity max 1.5T/m²

Excellent load-bearing capacity max 1.5T/m²

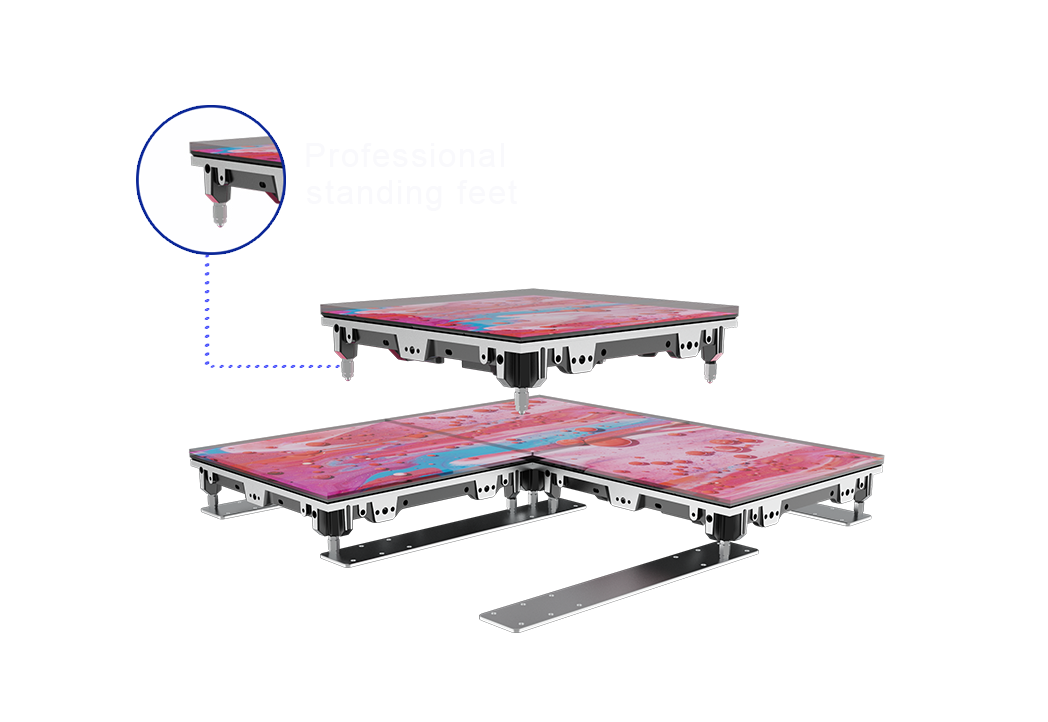

Floor installation system

Floor installation system

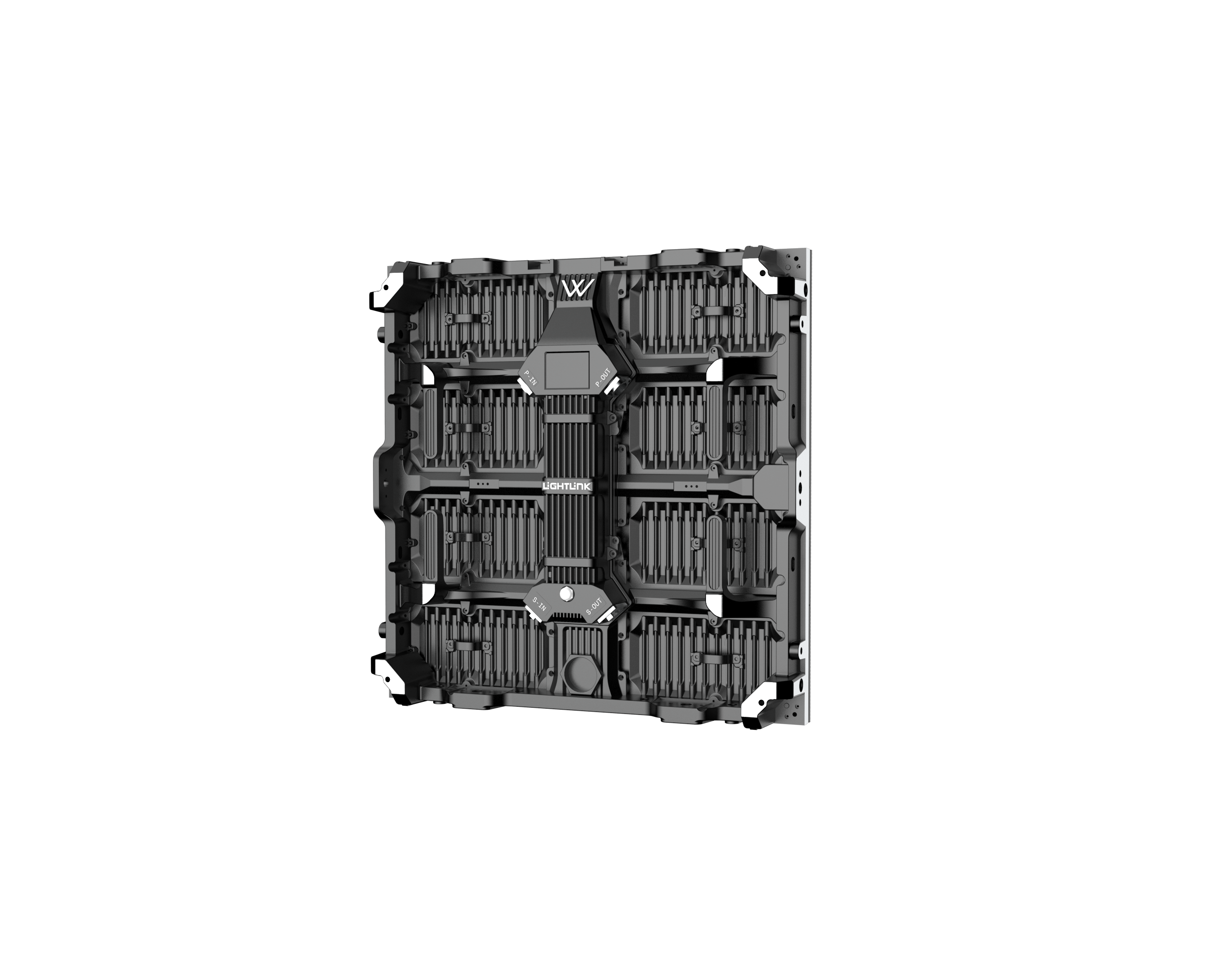

Product parameters

  • Specifications

    Alien D (Outdoor)

  • Pixel pitch(mm)

    2.6

    2.9

    3.9

    3.9

    4.8

  • LED type

    SMD1212

    SMD1415

    SMD1415

    SMD1415

    SMD1415

  • Scan ratio(S)

    1/16S

    1/14S

    1/8S

    1/16S

    1/7S

  • Module resolution(Pixels)

    192*48

    192*96

    128*32

    128*32

    104*26

  • Pixel density(Dots/m²)

    147,456

    112,896

    65,536

    65,536

    43,264

  • Brightness(Cd/m²)

    ≤2250

    ≤2100

    ≤2500

    ≤3800

    ≤2250

  • Cabinet weight(Kg)

    7.5±5%

  • Module size(mm)

    500*125

  • Cabinet size(mm)

    500(W)*500(H)*87(D)

  • Max power consumption(W/m²)

    ≈650

  • Average power consumption(W/m²)

    ≈325

  • Refresh rate(Hz)

    ≤7680Hz

  • Viewing angle(H/V)

    140°

  • Input voltage(V)

    AC 100-240V,50/60Hz

  • Frame material

    Aluminum die-casting

  • IP rate(Front / Back)

    IP65/IP54

  • Operational temp / Humidity

    -20°C ~ +45°C, 10% ~ 90% RH

  • Storage temp / Humidity

    -10℃ ~ +40℃，10% ~60%RH

  • Lifespan(H)

    ≥50,000
